Technical Specifications

LTE FDD Cat M1:
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/
B25/B26/B27/B28/B66/B85
LTE FDD Cat NB2:
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/
B25/B28/B66/B71/B85
GSM/EDGE:
850/900/1800/1900 MHz

GNSS Chipset: All-In-One GNSS Receiver
GNSS System: GPS + Glonass + Beidou + Galileo +QZSS
Receiver type: 47 tracking / 47 acquisitions- channel GNSS receive
Acquisition: -147dBm
Tracking: -166dB

Charging and Data Transmission: USB-C connector
Network, GNSS Antenna: Internal Only

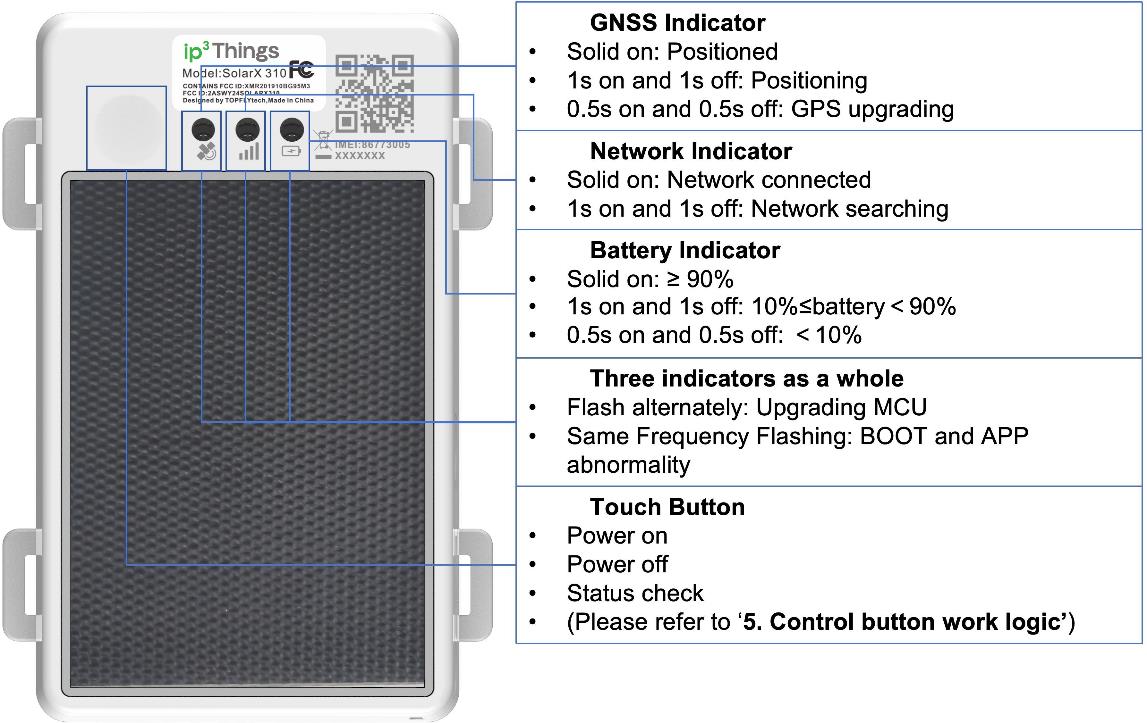

LED Indicator: Network, GNSS and Power
Touch button: for Power On and Off
FOTA: Yes
Hall Switch: For Remove Al

Waterproof: IP67
Dimensions: 88mm*60.4mm*30.7mm (3.46” *2.38” *1.21”)
Weight: 150g (5.3oz)
Battery: Rechargeable Li-Polymer 2500 mAh/ 3.6V
Standby Time:
30 minutes reporting: 100 Days
5 minutes

Transmit Protocol: TCP, UDP, MQTT, SMS
Data Security & Encryption Option: MD5/ AES128
BLE Accessory Support: Yes
Scheduled Timing/angle/distance Report: Report position and status at preset interva

FCC
PTCRB
IC
AT&T
T-Mobile
Verizon
